Dive into the specs and find your perfect solution!
Dimensions / Weights:
Seat Height: 850–870 mm standard; Optional adaptive ride height lowers further
Length (over mud guard): 2,210 mm
Height (over windshield): 1,430 mm
Width: 1000 mm (inclusive of mirrors)
Tank Capacity:
Usable Tank Volume: 19 liters
Reserve: Approximately 4 liters
Weight:
Unladen Weight, Road Ready, Fully Fuelled: 237 kg
Permitted Total Weight: 465 kg
Payload (with standard equipment): 228 kg
Quick shifter
Dimensions / Weights:
Seat Height: 850 / 870 mm (OE lowered suspension 800 mm / 820 mm)
Inner Leg Curve: 1,870 mm / 1,910 mm (OE lowered suspension 1,750 mm / 1,790 mm)
Length (over mud guard): 2,207 mm
Height (over windshield): 1,430 mm
Width: 952.5 mm
Tank Capacity:
Usable Tank Volume: 20 liters
Reserve: Approximately 4 liters
Weight:
Unladen Weight, Road Ready, Fully Fuelled: 249 kg
Permitted Total Weight: 465 kg
Payload (with standard equipment): 216 kg
Quick shifter
Dimensions / Weights:
Seat Height: 850 / 870 mm (OE lowered suspension 800 mm / 820 mm)
Inner Leg Curve: 1,870 mm / 1,910 mm (OE lowered suspension 1,750 mm / 1,790 mm)
Length (over mud guard): 2,207 mm
Height (over windshield): 1,430 mm
Width: 952.5 mm
Tank Capacity:
Usable Tank Volume: 20 liters
Reserve: Approximately 4 liters
Weight:
Unladen Weight, Road Ready, Fully Fuelled: 249 kg
Permitted Total Weight: 465 kg
Payload (with standard equipment): 216 kg
Quick shifter
Dimensions / Weights:
Design: 2-cylinder, 4-stroke, parallel twin
Displacement: 889 cm³
Power: 77 kW
Starter: Electric starter
Cooling: Liquid cooled with water/oil heat exchanger
Stroke: 68.8 mm
Bore: 90.7 mm
Clutch: PASC™ antihopping clutch, mechanically operated
Emissions: CO2 emissions 105 g/km
EMS: Bosch EMS with RBW
Fuel Consumption: 4.5 l/100 km
Lubrication: Forced oil lubrication with 2 oil pumps
Chassis:
Frame Design: Chromium-molybdenum steel frame using the engine as stressed element, powder coated
Weight (without fuel): 204 kg
Tank Capacity (approx.): 19 liters
ABS: Bosch 9.1 MP (incl. cornering-ABS and offroad mode, disengageable)
Front Brake Disc Diameter: 320 mm
Rear Brake Disc Diameter: 260 mm
Front Brake: 2x radially mounted 4 piston caliper
Rear Brake: 2 piston floating caliper
Chain: 520 x-ring
Front Suspension: WP APEX 43
Rear Suspension: WP APEX monoshock
Ground Clearance: 252 mm

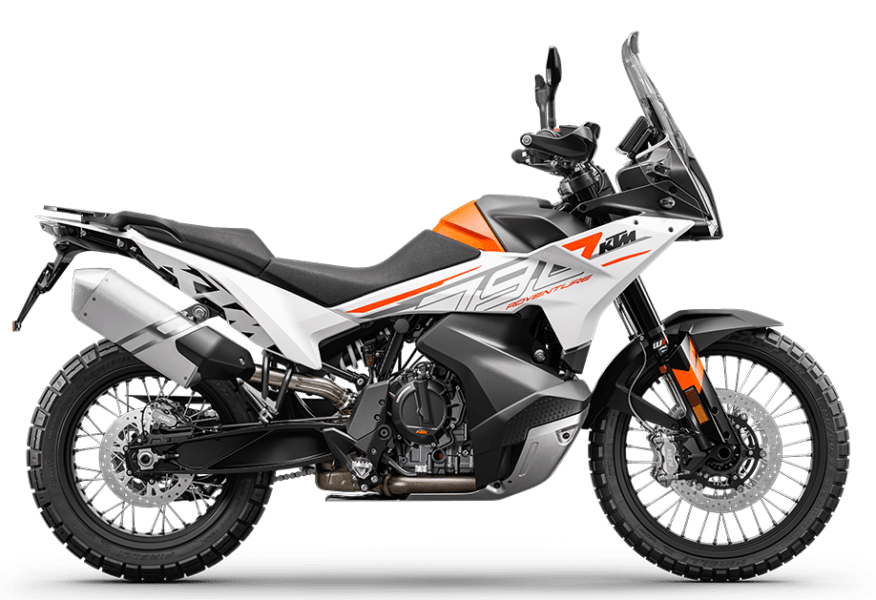

KTM 790 Adventure (White) – Spec Sheet
Engine / Performance:
Design: 2-cylinder, 4-stroke, parallel twin
Displacement: 799 cm³
Power: 95 PS (~70 kW)
Torque: 87 Nm
Transmission: 6-speed
Cooling: Liquid cooled with water/oil heat exchanger
Fuel consumption: Approx. 4.2 L/100 km (as tested)
Chassis / Suspension / Brakes:
Frame design: Chromium-molybdenum steel frame using engine as stressed element, powder-coated
Front suspension: WP APEX 43 USD fork; travel approx. 200 mm
Rear suspension: WP APEX monoshock; travel approx. 200 mm
Front brake: 2 × 4-piston radial calipers, 320 mm discs
Rear brake: 2-piston floating caliper, 260 mm disc
Chain drive: 520 X-Ring chain
Dimensions / Weights:
Seat Height: 840 / 860 mm (depending on setting)
Wheelbase: 1509 mm ±15 mm
Ground Clearance: 233 mm
Tank Capacity: Approx. 20 litres
Weight (without fuel): 203 kg
Other Features:
Cornering ABS & Off-road ABS modes (lean-angle sensitive)
Spoked wheels with tubeless rims – 21″ front & 18″ rear (in some markets)
Height adjustable two-piece seat, tall windscreen, good off-road/dual-sport capability

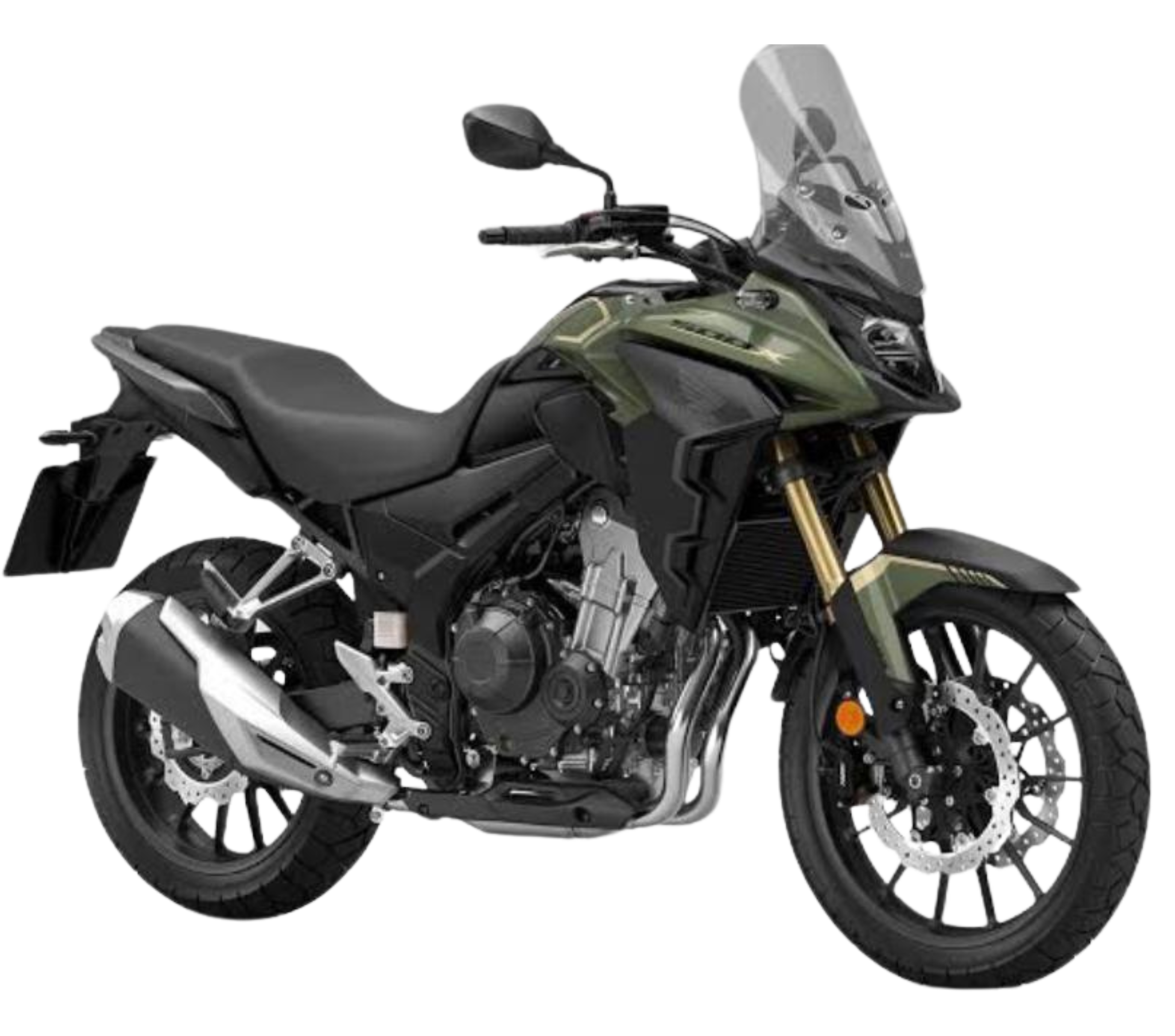

Engine:
Type: 471cc, DOHC, liquid-cooled parallel twin; 8 valves
Bore x Stroke: 67.0 x 66.8 mm
Transmission / Final Drive: 6-speed / chain
Fuel Delivery: PGM-FI with 34 mm throttle bodies
Clutch: Wet, multiple disc; cable operation
Engine Management / Ignition: Computer-controlled digital transistorized with electronic advance
Frame:
Type: Diamond-shaped steel tube mainframe
Suspension:
Front: 41 mm Showa SFF-BP USD fork; 5.9 in. travel
Rear: Pro-Link single shock, spring preload adjustable; 5.3 in. travel
Brakes:
Front: 2-piston calipers, dual 296 mm discs with ABS
Rear: 1-piston floating caliper, 240 mm disc with ABS
Wheels / Tyres:
Wheels: Cast aluminum spoked; 19-inch (front) / 17-inch (rear)
Tyres: 110/80-19 (front) / 160/60-17 (rear)
Dimensions:
Rake / Trail: 27.5° / 4.3 in.
Wheelbase: 56.9 in.
Ground Clearance: 7.1 in.
Seat Height: 32.8 in.
Fuel Capacity: 4.7 gal.
Wet Weight: 439 lb.
